Description of Automatic pure water back sealing photocell 0-500ml sachet packing machine
Product Description:
The automatic bagged water packaging machine is the main equipment of the bagged water production line. The machine consists of film feeding system, traction mechanism, heat sealing and cutting device, filling mechanism, etc., all refined from stainless steel materials, which meets the requirements of food production. Each process is accurately completed by the PLC control center through the touch screen according to the design requirements. The whole machine has an automatic adjustment device for film deviation, a film length metering adjustment device, multiple sterilization treatments, high filling accuracy, unique and hygienic and firm sealing. Using computer program man-machine interface. The operation is convenient and reliable. It is an ideal equipment for bagged water production.
Features:
1. Material bag forming
2. Ultraviolet ray sterilization
3. Vertical seam heat sealing
4. Date synthesis
5. Linear traction bag
6. Quantitative canning
7. Horizontal sealing and heat sealing
8. Cut off the material bag
9. Automatic counting
10. The temperature can be adjusted manually at will
General:
1, Application: all kinds of liquid without gas, especially soy, wine, vinegar, juice, fruit pulp, soybean milk, peanut oil, vegetable oil, plant oil, mineral water, and liquid chemical products.
2, Sealing style: back sealing
3, Function: film sterilization,auto complete Bag-making, filling, sealing, printing, cutting and counting
4, Whole machine with stainless steel covering, With foot wheels for easy transportation;
Price list:
| Items | Name of machine | Model | Filling range | Applicable bag | Qty. |
| 1.1 | Sachet form-fill-seal machine | 500A1 | 0-500ml | Back sealing
1layer without cursor | 1set |
| 1.2 | Sachet form-fill-seal machine | 1000A1 | 0-1000ml | | 1set |
| 1.3 | Sachet form-fill-seal machine
(two filling heads) | 500A-2 | 0-500ml | | 1set |
| Options : |
| 1.1.1 | Ribbon date coding | 1pcs |
| 1.1.2 | PE plastic liquid packing film (MOQ:500kg) | 1kg |
| 1.1.3 | Film mold fee | Each
color |
| 2.1 | Different voltage customization fee | / |
Technical specifications:
| Model | 500A1 | 1000A1 | 500A-2 |
| Bag length (mm) | 50-150 | 50-250 | 50-150 |
| Bag width (mm) | 40-150 | 40-175 | 40-150 |
| Packaging film width (mm) | 100-320 | 100-380 | 100-320 |
| Package volume (ml) | 0-500 | 0-1000 | 0-500 |
| Packing speed (bags/h) | 2000-2200 | 1100-1300 | 2000-2200 |
| Power (kw) | 1.6 | 2.5 | 1.6 |
| External dimensions (mm) | 880*760*1800 | 1050*850*2050 | 850*760*1800 |
| Weight (kg) | 275 | 380 | 275 |
Product Tags:
|
|

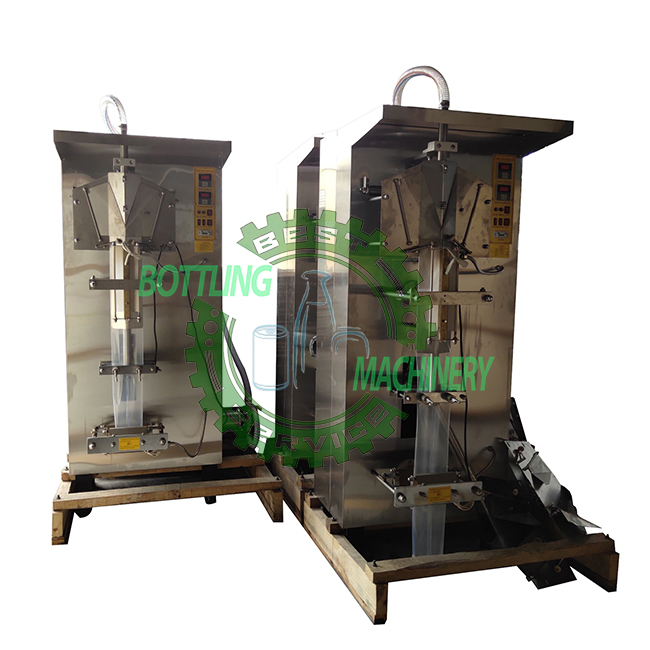

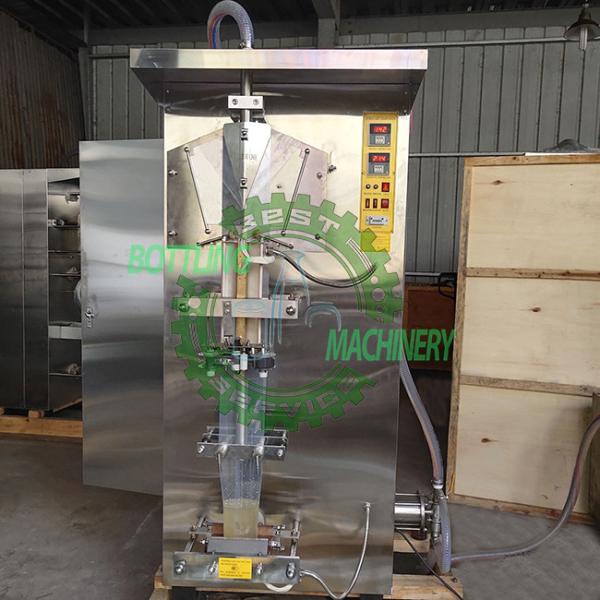

Automatic Pure Water Back Sealing Photocell 0-500ml Sachet Packing Machine Images
|
